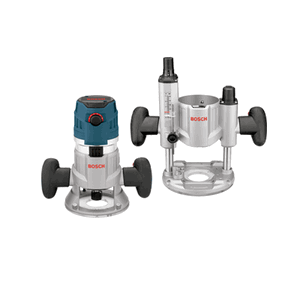

Bosch MRC23EVSK 2.3 HP Plunge & Fixed-Base Router
Check out the newest line of bosch routers.
The Bosch Difference
Bosch motor quality and power are unmatched.
Bosch Router Combo Packs with both plunge and fixed bases offer "The Best of Both Worlds."
10,000-25,000 RPM; 2.3 HP (Max Tool)
Trigger Control System - Trigger power switch is on the handle to give you better control. Another unique feature.
Smooth Plunge Action, Spring-Lock Plunge Lever, and Depth Rod for simple and accurate plunge routing
Afterlock Microfine Depth Adjustment - Easy & precise adjustments at any plunge setting
Versatile Fixed-Base Depth Adjustment - Features continuous microfine adjustment range & wrench for adjustments through top of optional router table
Always-On LED Lighting - For enhanced visibility in dark areas like inside cabinets
Precision Centering Design – Makes it easy to keep bit on cutline, so you can see the your material, when using jigs, templets, dovetail fixtures and similar guidance devices
Two-Stage Quick Clamp System - For fast tool-free conversion
Soft-start — Reduces start-up torque
Variable speed dial — For matching speed to workpiece and task
Constant-Response™ Circuitry — Maintains constant speed under load
Contoured soft grip handles — For enhanced control and comfort
Fixed base has threaded holes for mounting to router table positioned in Bosch 4-hole pattern and common 3-hole pattern.
Cord Swivel - For added mobility
Rugged carrying case has compartments for all included items
Base Diameter: 6" Fixed/ 6-11/16" Plunge
Collet Capacity: 1/2" and 1/4"
Cord Length: 10" ft. (3 m)
Max. Motor HP: 2.3 HP
No Load RPM: 10,000-25,000
Plunge Depth: 3" (75mm)
Rating: 120V AC
Subbase Opening: 2"
Fixed Base (MRF01)
Plunge base (MRP01)
1/4" Self-Releasing Collet Chuck -- 2 610 906 283
1/2" Self-Releasing Collet Chuck -- 2 610 906 284
16mm Shaft Wrench -- 2 610 991 388
24mm Collet Nut Wrench-- 2 610 992 417
T-Handle Hex Height Adjustment Wrench -- 2610923193
Carrying Case -- 2 610 913 367
M4 Screws for table mounting (3
